| Selected Ad |
| Category: |
Painting |
| Title: |

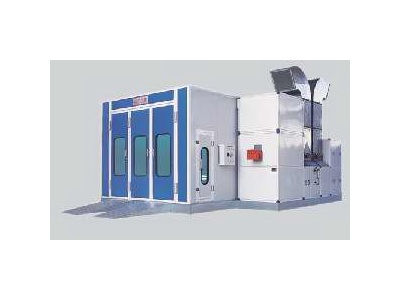

Spray & baking booth |
| Ad
Number: |
58 |
| Date Posted: |
6/20/2005 |
| Contact: |
Adnla Liu
1101 PALMARY PLAZA NO.4
XI'AN CHINA, Yukon - Canada
|
| Telephone: |
0086-29-88396071 ext. 209
|
|
|
|
|
|
Description
Configuration description for type 4000-I
1 Pipe type VCD blind damper can regulate the air charge and discharge respectively to make the chamber maintain a slightly positive pressure during spraying and baking operation.
2 Professional ventilation design, bag-type air pre-filter device and actuating mechanism of damper composed of quality pneumatic components help realization of a large circulation change over between outer circulation inlet spraying and inner circulation baking varnish, so as to make air velocity constant during spraying, making temperature uniform, and actuation mechanism of the damper having a big torque force, quick, precise and reliable actuation and long service life.
3 High efficient RIELLO diesel burner imported from Italy is characterized by reliable ignition and long life service.
4 Imported computerized auto control pane will provide desired time, temperature, over temperature and shot-circuit protection for spraying, baking varnish and heating spraying production. With the use of a differential pressure meter, pressure difference between indoor and outdoor can be timely observed, so as to be able to make proper and timely maintenance on the filtering system.
5 Option of 4Kw and 7.5Kw blowers can be made according to the actual need.
6 Safety door��s overpressure protection device is able to guarantee the auto operating of door in case of overpressure in baking varnish chamber, so as to ensure operator��s safety.
7 Hot air generation frame of this type is made of die-cast aluminum-clad corner and aluminum section material. Thermal insulating plate surface is treated with powder coating. Lower and exhaust blower with equal power, low noise and high wind quality are provided for blowing and exhausting . to adjusting the air charging door and exhausting door can make the baking varnish chamber work in a state of slightly positive pressure.
8 In order to improve illumination over both side of the automobile, ensure real color during spraying and meet the best requirement, four group of downward lamps are fitted on each side of the room.
9 Flame retardant polystyrene insulating wall of H-panel plug with double face sided double-color-coated and double baked varnish. It features good heat insulating performance and strong rust-proof.
10 Imported high quality filter together with molded ceiling pan holder ensure complete air purification in the room .Up ward-rowed lamp of 45��pire baking provide the entire room with soft light all corner.
11 Waste gas treatment device of multi-layer active automobilebon will fully absorb |
|
|
|
|
|
|
