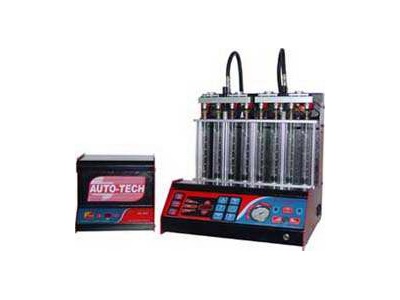

Fuel injector tester & cleaner
|
| Selected Ad |
| Category: |
Analyzers |
| Title: |
Fuel injector tester & cleaner |
| Ad
Number: |
56 |
| Date Posted: |
6/20/2005 |
| Contact: |
Adnla Liu
1101 PALMARY PLAZA NO.4
XI'AN CHINA, Yukon - Canada
|
| Telephone: |
0086-29-88396071 ext. 209
|
|
|
|
|
|
Description
Main feature :
1. Working capacity: Capable of test the injecting angle, dribbling, atomizing, volume, uniformity, cycle time by true simulation automatically or selectively.
2. Test range: FREQ:0-9950r/min PMW:0-20ms COUNT: 0-9950, relevant timing function. It is of standard test may perform automatic test and cleaning, and provide thousands of test procedures for selective test.
3. Exclusive test mode: It has many test modes such as random changing value setting, imitating engine running, signal feedback of the loading, random pause /continue during test, timing/counting mode with high accuracy.
4. Cleaning system: May test and clean one or more injectors at a time, even conduct flush-back cleaning or ultrasonic cleaning.
5. Ultrasonic cleaning: Adopts high-frequency ultrasonic tech- unique to conduct accurate cleaning.
6. Memory program: May diagnose the changes of a group of injectors before and after cleaning.
7. Fuel feed system: Controlled by microprocessor not only can infinitely variable regulated, but also can automatically compensate the loss of flow pressure.
8. Control panel: Designed with the latest international popular graphs.
9. Injector protection: With exclusive automatic device, it may regulate the current and voltage to ensure the test of the high /low impedance injectors and voltaic injectors.
10. Protection system: Equipped with liquid level indicator, over-temperature indicator, over-density alarm of flammable gas, automatic drain, pump overtime null running protective device.
11. Cycle test: May diagnose the injectors' quality and injecting uniformity by test the minimum open/close cycle.
12. Structure design: Adopts the light alloy material, high precision test tube and new backlight technique.
13. Various connectors: Various connectors are suit for different types of injectors, including standard Hose/Tail type, K type, TBI type, and the customized type. (Optional)
14. Test liquid and detergent: The liquid are innocuous, and have no peculiar smell. They all meet the standards of Montreal agreement.
15. Test device for side feed fuel injector: Consist of loop board, lunate plank, and sleeve couple. The unique design is embody in accurate test for various injectors. (Optional)
USD 1250 ( Origin China ) |
|
|
|
|
|
|
